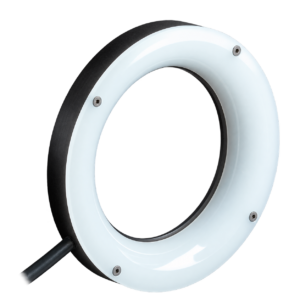

Advanced Illumination DF198 MicroBrite™ Diffuse Ring Light
Highlights
Advanced Illumination DF198 is a MicroBrite™ diffuse ring light designed to provide multi-angle machine vision illumination from a single light head. Its curved diffuser supports diffuse dark field illumination at shorter working distances and diffuse bright field illumination at longer working distances, allowing the lighting geometry to be adjusted by changing the relationship between the light and the inspection surface.
Features
Bright Field & Dark Field Illumination
— The curved diffuser supports medium-to-low-angle dark field illumination at close working distances and diffuse bright field illumination when positioned farther from the target.
— The curved diffuser supports medium-to-low-angle dark field illumination at close working distances and diffuse bright field illumination when positioned farther from the target.
Diffuse Multi-Angle Output
— Soft, distributed illumination can reveal surface features while reducing the highly directional appearance of conventional direct ring lights.
— Soft, distributed illumination can reveal surface features while reducing the highly directional appearance of conventional direct ring lights.
Five Available Ring Sizes
— Outer-diameter options of 50, 95, 115, 180, and 280 mm provide different illumination geometries, working distances, and pattern sizes.
— Outer-diameter options of 50, 95, 115, 180, and 280 mm provide different illumination geometries, working distances, and pattern sizes.
RGB Output Available
— RGB configurations are designed for use with Advanced Illumination multi-channel control systems where independent color-channel operation is required.
— RGB configurations are designed for use with Advanced Illumination multi-channel control systems where independent color-channel operation is required.
High-Output Strobe Capability
— I3 and I3S configurations support pulsed operation up to 5× continuous levels, while C5 configurations with the Pulsar 320E support up to 10× continuous intensity.
— I3 and I3S configurations support pulsed operation up to 5× continuous levels, while C5 configurations with the Pulsar 320E support up to 10× continuous intensity.
Four M4 Mounting Points
— Opposing M4 mounting points provide flexible positioning of the ring light around the imaging axis.
— Opposing M4 mounting points provide flexible positioning of the ring light around the imaging axis.
Illumination Geometry
Diffuse Dark Field
At working distances less than or equal to the light diameter, the DF198 provides diffuse medium-to-low-angle illumination for highlighting surface irregularities and raised or recessed features.
Diffuse Bright Field
At working distances greater than the light diameter, the curved diffuser can provide soft bright field illumination across the inspection surface.
Visible & RGB Options
Available illumination options include white, 455 nm blue, 530 nm green, 625 nm red, and RGB.
Control & Integration
Control Options
Available configurations include C1, C5, IC, I3, I3S, and direct 24 V operation, subject to configuration restrictions.
Continuous & Strobe Operation
Industrial LEDs support continuous illumination as well as high-output overdrive strobe operation with compatible controllers.
Ingress Protection
IP40.
Operating Environment
Ambient operating temperature from 0 °C to 35 °C with operating case temperatures from 25 °C to 60 °C.

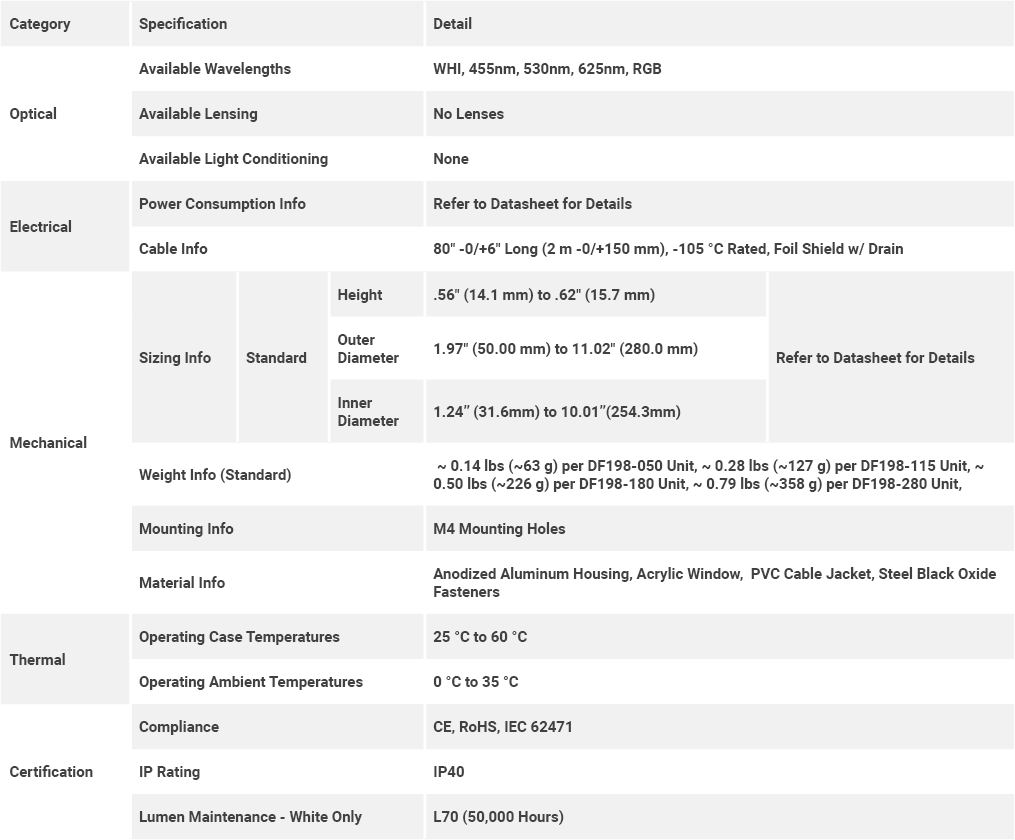

General Specifications
General optical, electrical, mechanical, thermal, environmental, and compliance specifications for the Advanced Illumination DF198 MicroBrite™ Diffuse Ring Light Series.

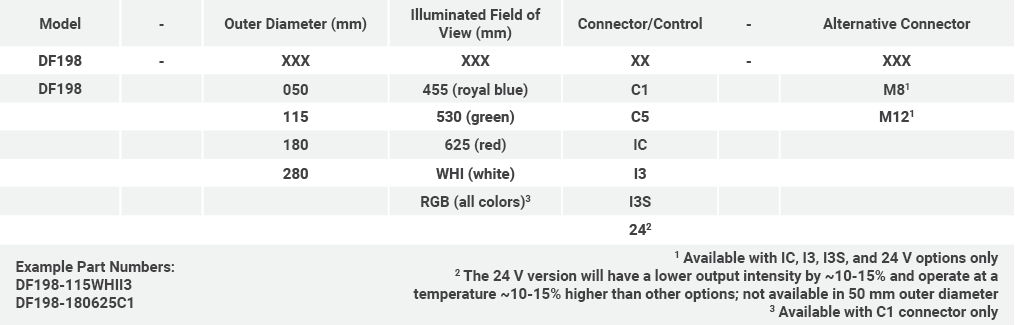

Part Number Key
Use the DF198 part number key to select outer diameter, illumination output, connector or control option, and supported alternative connector configuration.
Applications
Surface Defect Inspection
Embossed Text Inspection
Photometric Stereo
Diffuse Dark Field Inspection
Diffuse Bright Field Inspection
Color Contrast Inspection
