Advanced Illumination RL208 MicroBrite™ Bright Field Ring Light
Highlights

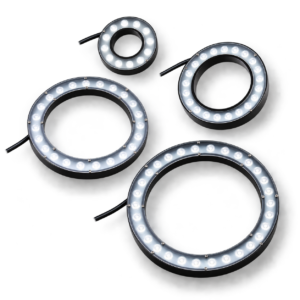

Advanced Illumination RL208 is a compact, high-intensity MicroBrite™ direct bright field ring light designed for uniform machine vision illumination. Four available ring sizes and medium or wide lens configurations support a range of fields of view and working distances, while 16 wavelength options provide flexibility for visible, UV, and near-infrared inspection.
Features
Direct Bright Field Illumination
Directional ring illumination provides even coverage and good surface detail for bright-field machine vision inspection.
Directional ring illumination provides even coverage and good surface detail for bright-field machine vision inspection.
Four Ring Sizes
Available with 50, 100, 160, or 200 mm inner diameters to accommodate different camera, lens, field-of-view, and working-distance requirements.
Available with 50, 100, 160, or 200 mm inner diameters to accommodate different camera, lens, field-of-view, and working-distance requirements.
16 Wavelength Options
Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
Medium & Wide Lens Options
20° medium and 32° wide beam configurations allow the illumination pattern to be matched to the required field coverage and working distance.
20° medium and 32° wide beam configurations allow the illumination pattern to be matched to the required field coverage and working distance.
Overdrive Strobe Capability
Compatible inline strobe configurations support output up to 5× continuous levels, while C5 configurations with the Pulsar 320E support up to 10× continuous intensity.
Compatible inline strobe configurations support output up to 5× continuous levels, while C5 configurations with the Pulsar 320E support up to 10× continuous intensity.
M4 Mounting
Integrated M4 mounting holes support straightforward mechanical installation around the imaging axis.
Integrated M4 mounting holes support straightforward mechanical installation around the imaging axis.
Optical Configuration
Medium Lens
20° beam angle for more concentrated directional illumination.
Wide Lens
32° beam angle for broader illumination coverage at shorter working distances.
UV to NIR Selection
Available in white plus 365, 375, 385, 395, 405, 455, 470, 505, 530, 590, 625, 660, 730, 850, and 940 nm.
Configuration & Integration
Available Sizes
50, 100, 160, and 200 mm inner-diameter configurations.
Control Options
Available configurations include C1, C5, IC, I3, I3S, and direct 24 V operation.
Ingress Protection
IP50.
Operating Environment
Manufacturer-specified ambient operating temperature is 0 °C to 35 °C, with operating case temperature from 25 °C to 60 °C.
General Specifications

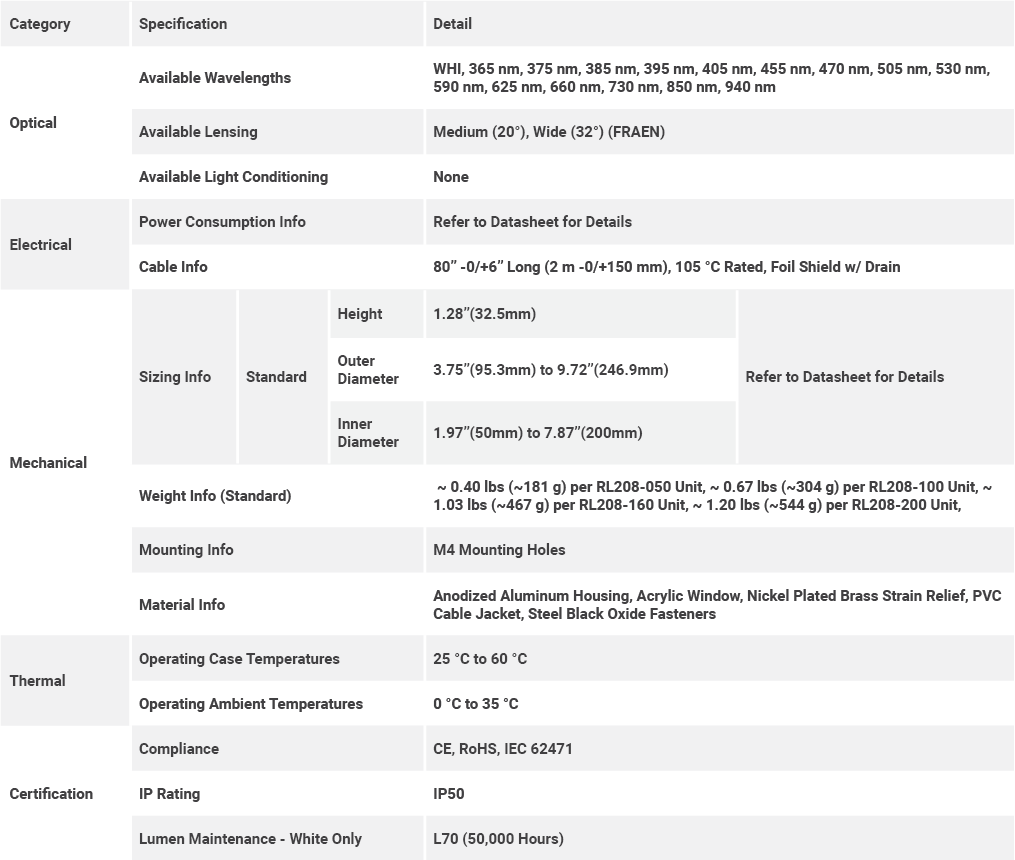

General optical, electrical, mechanical, thermal, environmental, and compliance specifications for the Advanced Illumination RL208 MicroBrite™ Direct Bright Field Ring Light Series.
Part Number Key

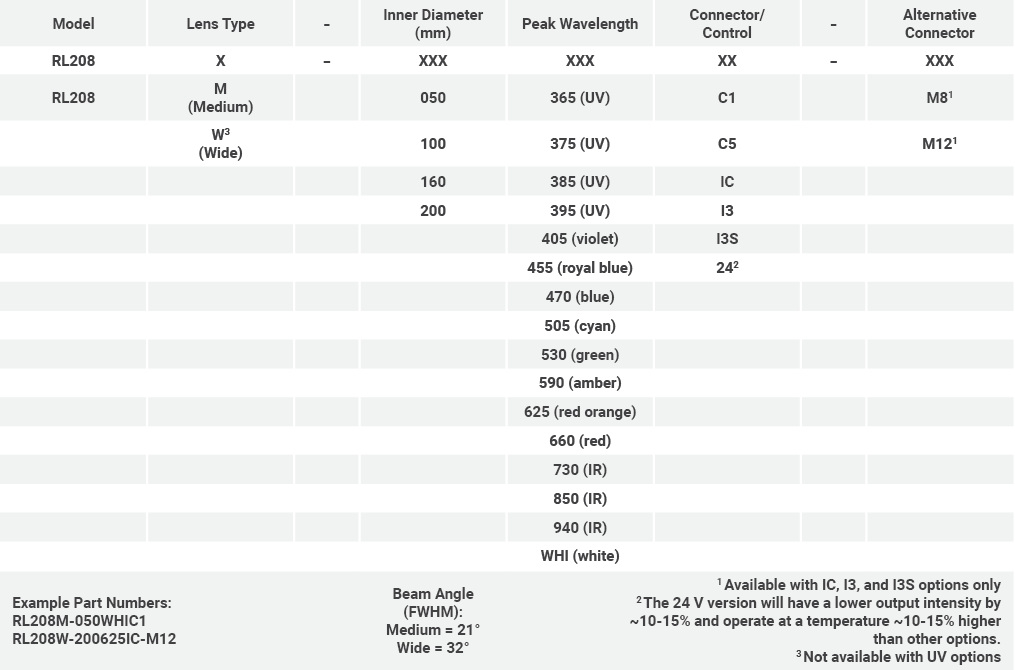

Use the RL208 part number key to select lens type, inner diameter, peak wavelength, connector or control option, and alternative connector configuration.
Applications
Color Inspection
Defect Detection
Flat Surface Inspection
Fill Level Inspection
Circuit Board Inspection
Food Safety Inspection
Medical Imaging
Bright Field Inspection
