Smart Vision Lights SX30-N4

Highlights

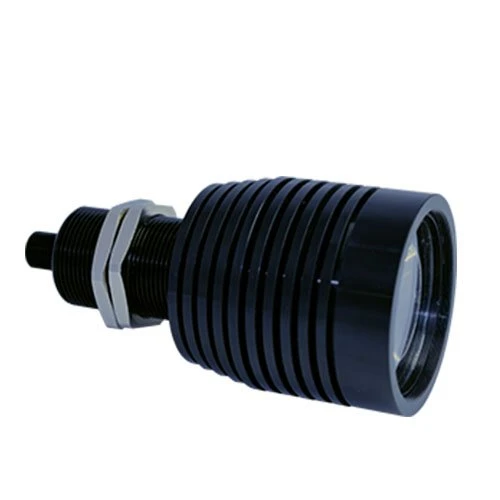

The Smart Vision Lights SX30-N4 Prox Lights feature a single high current LED enclosed in a 30mm Barrel Style Housing. The SX30 (N4) Series feature an NPN and PNP strobe signal with a 1-10VDC analog intensity control signal for added versatility. The SX30 (N4) Series has multiple mounting options allowing for ease of install and comes with two mounting nuts. The narrow, 4-degree lens allows for a long, tightly focused beam of light.

Smart Vision Lights SX30-N4 Features

A narrow, 4-degree lens allows for a long, tightly focused beam of light
Built-in driver, no external wiring needed
PNP and NPN strobe input
5-pin M12 quick connect
Multiple mounting options

Smart Vision Lights Wavelength Chart 8

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. 175 mA
Wattage

Max. 6 W
Strobe Input

PNP > +4VDC or greater to activate | NPN > GND (<1VDC) to activate
PNP Line

4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line

15 mA @ Ground (0 VDC)
Continuous Mode

NPN can be tied to ground OR PNP can be tied to 24VDC (not both).
Analog Intensity

The output is adjustable from 10%–100% of brightness by a 1–10 V DC signal.
Connection

5-pin M12 connector
Ambient Temperature

-18º–40º C (0º–122º F)
IP Rating

IP50
Weight

~320 g
Compliances

CE, RoHS, IEC-62471
