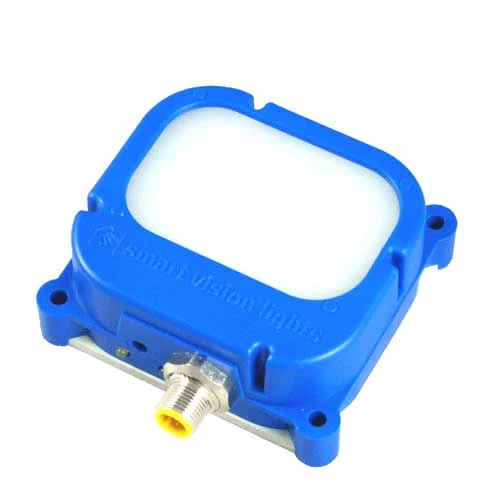

Smart Vision Lights SB75

Highlights

The Smart Vision Lights SB75 Brick Light features a built-in smart driver and a diffused lens, making it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity with the 1-10VDC analog signal line. Heat is dissipated through the aluminum backplate, allowing the SB75 to be run at a higher current and a greater intensity.

Smart Vision Lights SB75 Features

Intensity adjustable from 10%–100% using a built-in potentiometer
Built-in smart driver
Backlight lens (diffuser) is factory installed
PNP and NPN trigger signal input
5-pin M12 quick connect

Smart Vision Lights Wavelength Chart 7

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. 375 mA
Wattage

Max. 9.0 W
On/Off Input

PNP : +4VDC or greater to activate | NPN : GND (<1VDC) to activate
PNP Line

4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line

15 mA @ Ground (0 VDC)
Continuous Mode

NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer

270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity.
Analog Intensity

The output is adjustable from 10%–100% of brightness by a 1–10VDC signal.
Connection

5-pin M12 connector
Ambient Temperature

-18º–40º C (0º–122º F)
IP Rating

IP50
Weight

~155 g
Compliances

CE, RoHS, IEC-62471
