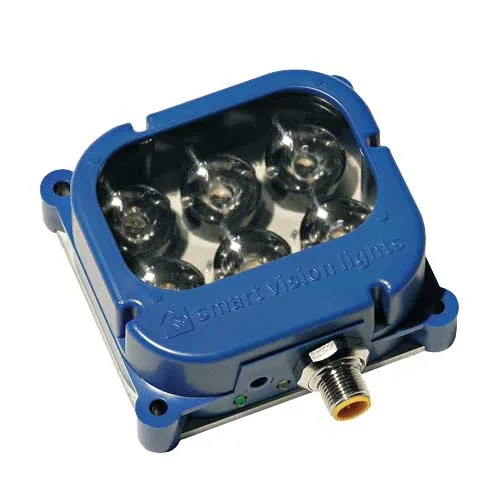

Smart Vision Lights S75

Highlights

The Smart Vision Lights S75 Brick Light is a spotlight that features a built-in smart driver. NPN or PNP trigger signal inputs can be used to control the on/off the input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or by adjusting the built-in manual potentiometer. Heat is dissipated through the aluminum backplate, which allows the S75 Brick Light Series to be run at a higher intensity current. Smart Vision Lights recommends that the S75 be used at a working distance between 300 mm and 4000 mm.

Smart Vision Lights S75 Features

• Intensity adjustable from 10%–100% using a built-in potentiometer
• Built-in smart driver
• PNP and NPN trigger signal input
• 5-pin M12 quick connect
