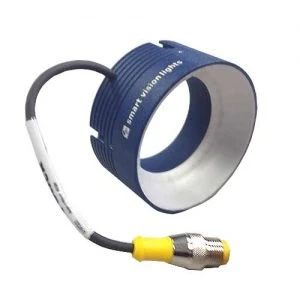

Smart Vision Lights RM75

Highlights

The Smart Vision Lights RM75  mini ring light is compact, yet produces a homogeneous, uniform light pattern. The RM75 features an integrated Multi-Drive^™ constant current driver that operates in continuous operation or OverDrive^™ strobe mode depending on wiring configuration. The light also offers overcurrent protection and PNP and NPN trigger signal input. The industry-standard 5-pin M12 connector makes for simple wiring. Smart Vision Lights recommends the RM75 be used at a working distance between 50 mm and 200 mm. Mounting options for the RM75 include four (4) T-slots and four (4) M4 threaded holes.

Smart Vision Lights RM75 Features

• Built-in Multi-Drive allows the light to work in continuous operation or OverDrive mode
• Low-angle ring light for darkfield applications
• Built-in constant current driver, no external driver is needed.
• PNP and NPN trigger signal input
• 5-pin M12 quick connect
• The unique SafeStrobe technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
