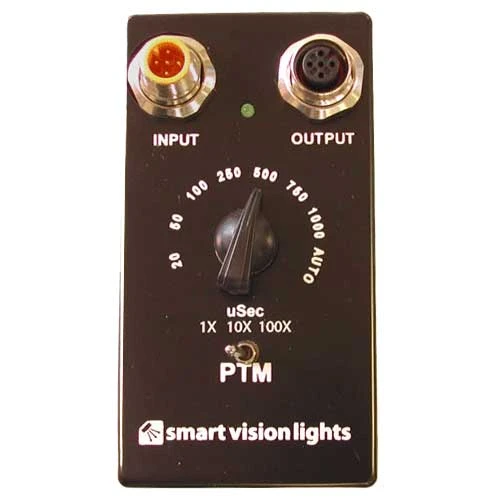

Smart Vision Lights PTM
Highlights
The Smart Vision Lights PTM accepts a pulse of 5μs or longer and holds the pulse for the selected duration. The PTM allows the user to select a pulse length from 8 preset durations. The Module has a male M12 connector input which will connect to the camera and a female M12 output that will connect to OverDrive lights. Current OverDrive lights are pulse following while high-speed cameras are pulse initiated. High-speed cameras operate by sending a strobe pulse but then expect the light output to be on for 20, 50, 100, 250, 500, 750, or 1000 microseconds. A common strobe pulse of 5μs at the TTL level is used by high-speed cameras.
Smart Vision Lights PTM Features
- Male to female connection
- Accepts a pulse of 5μs or longer
- Ability to set pulse time with 8 position rotary selector
- Pulse settings from 20μs to 250ms
- Reaction time or latency of 5μs
- Powered by 24VDC
- NPN and PNP strobe
- LED will indicate strobe output
