Smart Vision Lights PGM
Highlights

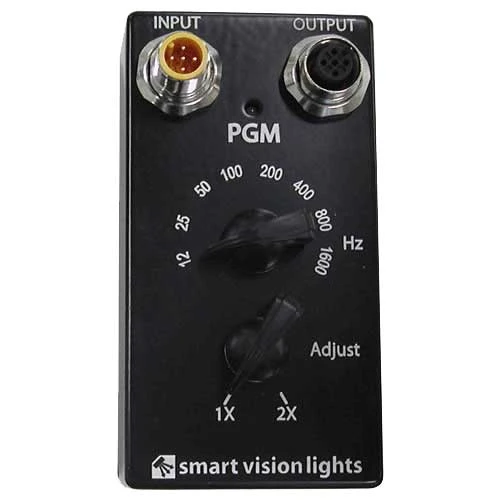

The Smart Vision Lights PGM independent module is a free-running pulse generator that causes an attached light to strobe at a set frequency without an NPN or PNP trigger. This unit easily integrates with your power source and LED array using a male-to-female M12 connection. It operates at a 10 percent duty cycle, meaning that the light will be active for 10 percent of the period and inactive for 90 percent. The pulse rate can be set to any frequency from 12 to 3200 Hz with two rotary dials. The first dial has eight positions: 12, 25, 50, 100, 200, 400, 800, and 1600 Hz. The second dial allows the user to finely adjust the frequency set by the first dial. This dial can be set up to two times the frequency of the first dial. The PGM Stroboscope Module can be used with continuous operation, OverDrive strobe mode, and Multi-Drive lights (except for the XR256).
Smart Vision Lights PGM Features
- Male to female connection
- Set pulse frequency with 8 position rotary selector and adjustor
- Pulse settings from 12Hz to 4000 Hz
- Frequency adjustable to over 2 times setting
- Generates a 10% Duty Cycle pulse train
- Powered by 24VDC
- NPN strobe output/sinking
- LED will indicate strobe output
