Smart Vision Lights ODSX30-N4

Highlights

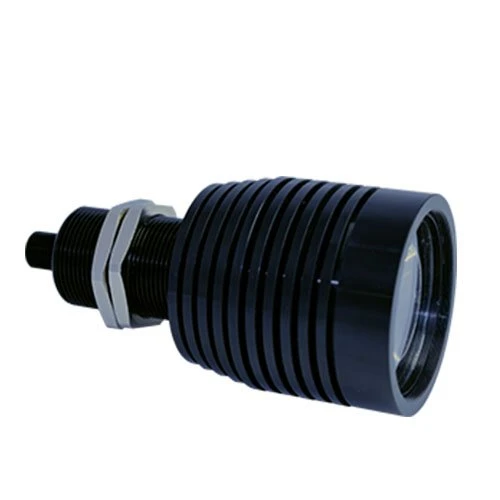

The Smart Vision Lights ODSX30-N4 features a single high current LED enclosed in a 30 mm Barrel Style Housing. This light is designed for Overdrive strobe mode only. The ODSX30 (N4) Series feature an NPN and PNP strobe signal with a 1-10VDC analog intensity control signal for added versatility. The ODSX30 (N4) Series has multiple mounting options allowing for ease of install and comes with two mounting nuts. The narrow, 4-degree lens allows for a long, tightly focused beam of light.

Smart Vision Lights ODSX30-N4 Features

OverDrive — Up to 2.5 times brighter than a standard SX30-N4 Prox Light
A narrow, 4-degree lens allows for a long, tightly focused beam of light
5-pin M12 quick connect
Driver built-in – No External wiring to a driver
PNP and NPN Strobe input

Smart Vision Lights Wavelength Chart 8

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. .5 A
Wattage

Max. 6 W
Strobe Input

PNP > +4VDC or greater to activate | NPN > GND (<1VDC) to activate
PNP Line

4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line

15 mA @ Ground (0VDC)
Duty Cycle

Max. 10%
Strobe/Pulse Time

Max. 5000 SPS (Strobes Per Second) | Max. Single Pulse = 125 ms
Analog Intensity

The output is adjustable from 10%-100% of brightness by a 0-10VDC signal
Connection

5-pin M12 connector
Ambient Temperature

-18º–40º C (0º–104º F)
IP Rating

IP50
Weight

~320g
Compliances

CE, RoHS, IEC 62471
