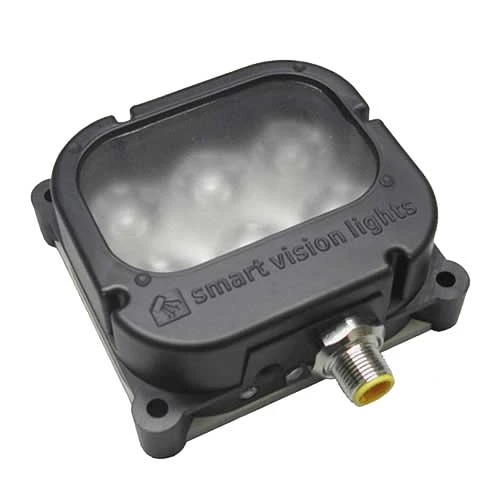

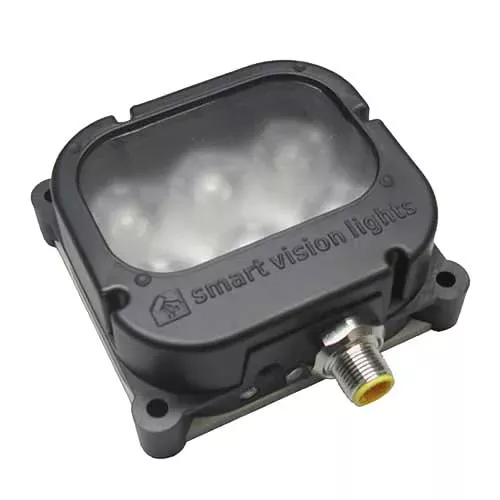

Smart Vision Lights ODSB75

Highlights

The Smart Vision Lights ODSB75 Brick Light features a smart driver with OverDrive strobe mode. The light’s diffused lens makes it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity using the 1-10VDC remote analog signal. The ODSB75 has the ability to produce up to 5000 strobes per second at a maximum strobe length of 125 mS when at a 10% maximum duty cycle. Heat is dissipated through the aluminum backplate, allowing the ODSB75 to be run at a high current and great intensity.

Smart Vision Lights ODSB75 Features

• OverDrive — Up to five times brighter than a standard S75 Brick Light
• 5-pin M12 quick connect
• Built-in smart driver
• PNP and NPN trigger signal input
• Backlight lens (diffuser) is factory installed
• Intensity adjustable from 10%–100% using a built-in potentiometer
