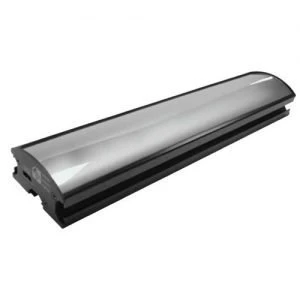

Smart Vision Lights ODLHF300

Highlights

The Smart Vision Lights ODLHF300 was designed as a direct LED replacement for standard fluorescent lighting. The plug n’ play design of the Direct-Connect Linear Light Series gives users tremendous flexibility without the concern for additional wiring. The ODLHF300 array utilizes 30 high-intensity LEDs and features a diffuse lens cover designed to disperse the light in a uniform and homogenous pattern the same as a fluorescent light of equivalent length. It also features an integrated constant current driver built into the light. Direct-Connect Series Linear Lights utilize 24 VDC and can operate in constant ON or strobing mode. NPN or PNP strobe trigger can be used to control the pulse of the light. Smart Vision Lights recommends the ODLHF300 be used at a working distance between 150 mm to 2000 mm.

Smart Vision Lights ODLHF300 Features

• OverDrive — Up to five times brighter than a standard fluorescent replacement light
• Built-in driver, no external wiring needed
• PNP and NPN strobe input
• T-Slot for mounting and connecting together
• Directly connect up to eight lights in a line without loss of uniformity
• Optional add-ons include 5-pin M12 connectors
