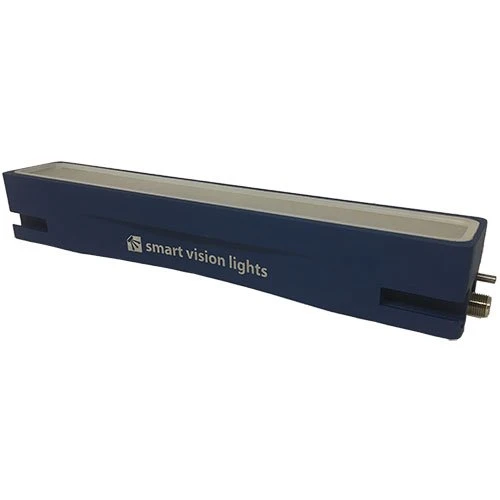

Smart Vision Lights LZE300

Highlights

The Smart Vision Lights LZE300 a SmartVisionLink enabled linear light, has the same features and functions as the LXE300, with the addition of communication with a SmartVisionLink managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. Direct connect or daisy-chain together up to six LZE300s within a single string of lights to create 18 individual zones with adjustable intensity levels. The standard LZE300 has a 12 LED configuration. The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.

The Smart Vision Lights LZE300 is available in three different connector options Direct Connect – This is the default option that allows connecting lights together with no additional cables. Lights are directly connected together, with no space between the lights. Up to six LZE300 lights can be directly connected together. Daisy-Chain – The Daisy-Chain option allows for a locking 5 PM-12 Jumper Cable to be used when connecting LZE300 lights together. Lights are able to be spaced apart from each other. Up to six LZE300 lights can be Daisy-Chained together. Plug – If multiple units are not going to be used, a plug termination can be ordered.

Smart Vision Lights LZE300 Features

• Connect up to six lights in a line without loss of uniformity
• Smar vision link-enabled to allow for easy intensity adjustment in both continuous and OverDrive strobe modes
• Ability to control intensity for the entire light or for each of the three LED zones when using BTM-1000 Bluetooth Module
• Standard LZE300 has a 12 LED configuration
• NanoDrive allows the light to be fully on in less than 500 ns
