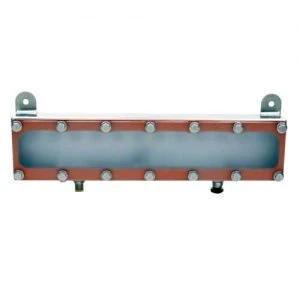

Smart Vision Lights LWB300

Highlights

The Smart Vision Lights LWB300 features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off the input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.

Smart Vision Lights LWB300 Features

5-pin M12 quick connect
Built-in driver, no external wiring needed
PNP and NPN trigger input signal
Washdown light with 316 stainless-steel enclosure
Daisy- chain up to six LWB300 linear lights using a 5-pin M12 washdown jumper cable

Smart Vision Lights Wavelength Chart 8

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. 700 mA
Wattage

Max. 17 W
On/Off Input

PNP: +4VDC to activate | NPN: GND (<1VDC) to activate
PNP Line

4 mA @ 4VDC | 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC10 mA @ 12VDC | 20 mA @24VDC
NPN Line

15 mA @ ground (0VDC)
Continuous Mode

NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer

270º turn pot — Intensity control of 10%–100%. Turn clockwise to increase intensity.
Analog Intensity

Brightness output is adjustable from 10%–100% via a 1–10VDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection

5 pin M12 connector
Ambient Temperature

-18º–40º C (0º–104º F)
IP Rating

IP68
Weight

~1430g
Compliances

CE, RoHS, IEC 62471
