Smart Vision Lights LHF300

Highlights

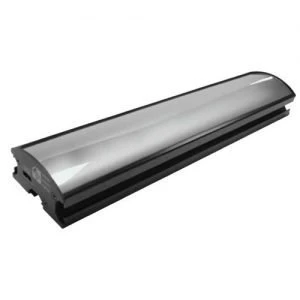

The Smart Vision Lights LHF300 was designed as a direct LED replacement for standard fluorescent lighting. The plug n’ play design of the Direct-Connect Linear Light Series gives users tremendous flexibility without the concern for additional wiring. The LHF300 array utilizes 30 high-intensity LEDs and features a diffuse lens cover designed to disperse the light in a uniform and homogenous pattern the same as a fluorescent light of equivalent length. It also features an integrated constant current driver built into the light. Direct-Connect Series Linear Lights utilize 24VDC and can operate in continuous or strobe mode. NPN strobe trigger can be used to control the pulse of the light.

The LHF series of linear lights is the brightest in the vision industry due to the heat dissipation of the housing. Lifespan and power output for LED lights are based on the junction temperature of the high current LED. The junction is the point where the light is generated inside the LED and the point of heat generation. To dissipate heat, Smart Vision Lights directly mounts high current LED to an aluminum circuit board. The aluminum circuit board is in direct contact with LHF series aluminum housing. This design efficiently transfers heat away from the high powered LEDs. Therefore, the LHF series Linear Light can be run at a higher current, producing an increased output due to the even heat dissipation of the aluminum housing. In constant operation, the housing on Smart Vision Lights LHF series lights will run at 50ºC at an ambient temperature of 25ºC.

Smart Vision Lights LHF300 Features

• Direct-Connect – Daisy Chain up to 8 units
• T-Slot for mounting and connecting together
• Driver built-in – 24VDC
• NPN Strobe input
• Continuous operation or Strobe mode
• Homogenous light pattern
