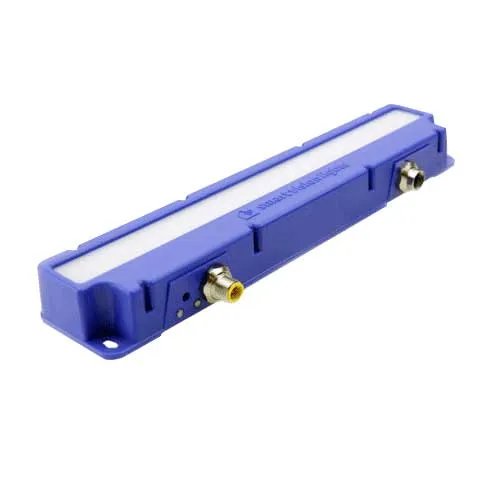

Smart Vision Lights LB300

Highlights

The Smart Vision Lights LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light, and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off the input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.

Smart Vision Lights LB300 Features

5-pin M12 quick connect
Built-in driver, no external wiring or driver is needed
PNP and NPN trigger input signal
Daisy- chain up to six LB300 linear lights using a standard 5-pin M12 jumper cable
Backlight lens (2447 diffuser) is factory installed

Smart Vision Lights Wavelength Chart 8

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. 700 mA
Wattage

Max. 17 W
On/Off Input

PNP: +4VDC or greater to activate | NPN: GND (<1VDC) to activate
PNP Line

4 mA @ 4VDC | 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC10 mA @ 12VDC | 20 mA @24VDC
NPN Line

15 mA @ ground (0VDC)
Continuous Mode

NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer

270º turn pot — Intensity control of 10% –100%. Turn clockwise to increase intensity
Analog Intensity

The output is adjustable from 10%–100% of brightness by a 1–10VDC signal.
Connection

5-pin M12 connector
Ambient Temperature

-18º–40º C (0º–104º F)
IP Rating

IP50
Weight

~370g
Compliances

CE, RoHS, IEC 62471
