Smart Vision Lights DFLW-200-4Z-KIT

Highlights

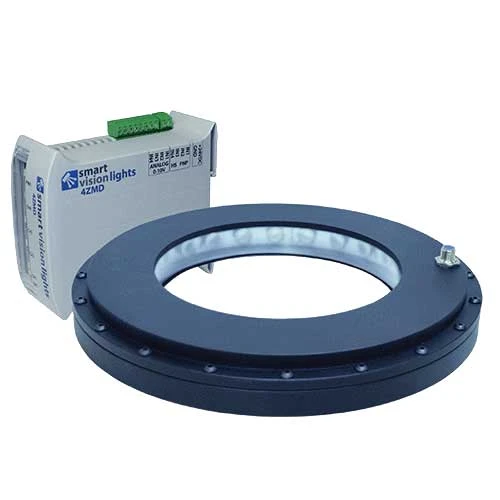

The Smart Vision Lights DFLW-200-4Z-KIT Dark Field Washdown Ring Light Kit is IP68 rated and comes in an anodized black aluminum housing. The DFLW-200-4Z-KIT includes a DFLW-200-4Z, a 4ZMD-750 external driver, and a 5PM12-J2000-KR jumper cable (2000 mm in length). Contact us for more details!

Product Description

The DFLW-200-4Z Dark Field Washdown Ring Light is IP68 rated and comes in an anodized black aluminum housing. The DFLW-200-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive, allowing a range to be set from 10%–100% for continuous operation or OverDrive strobe mode. The maximum continuous current for the 4ZMD-750 is 750 mA when connected to the DFLW-200-4Z. When connected to a LED Light Manager (LLM), each individual channel can be set to continue on, off, or any intensity level in between, and even OverDrive strobe mode.

Smart Vision Lights DFLW-200-4Z-KIT Features

• Four individual zones built into a single light
• Kit includes the 4ZMD-750, which allows for continuous operation or OverDrive strobe mode for each
  channel
• Built-in individual intensity control channels for either continuous operation or OverDrive strobe mode
• Microlens film directs a beam of light at a 25º angle towards an object, resulting in a high concentration and uniform field of illumination.
