Schneider Optics Emerald 5.6/135 V48


The Emerald Series, Emerald 5.6/135 V48 features compact and fast lenses with image circles ranging from 43.2 mm up to 90 mm are designed for large area and line scan sensors. The robust mechanics and a special focus setting and locking mechanism ensures highest mechanical stability even in harsh environment.


  • Image circle: 43.2 mm – 90 mm
  • 5 focal lengths: 28 mm – 100 mm
  • F-Mount lens and V48-Mount lens available
  • Covering a wide working distance range
  • Initial apertures: F2.2 – F5.6


  • Machine Vision
  • AOI (Automated Optical Inspection)
  • 3D and 2D measurement
  • Traffic and surveillance

Product Specifications

Schneider Optics

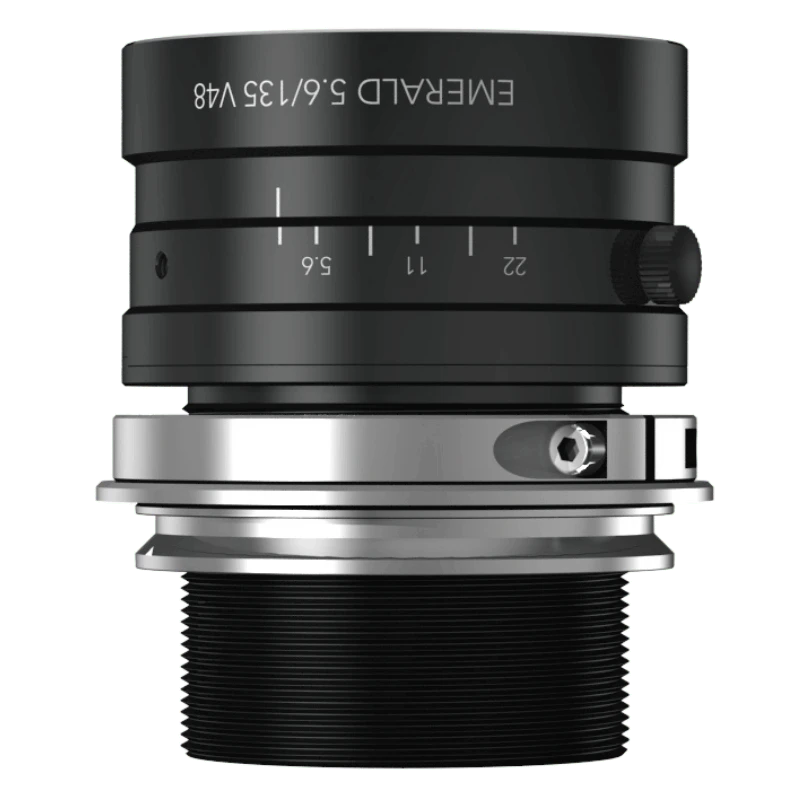

Schneider Optics Emerald 5.6/135 V48-Photo-1
