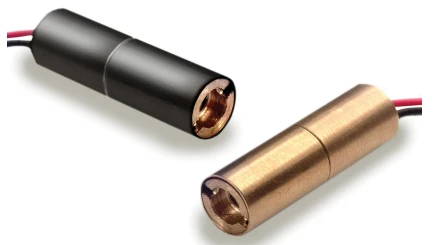

ProPhotonix Compact Laser Diode


The ProPhotonix Compact Laser Diode Modules measure from just 8mm in diameter (the elliptical beam options are 8mm in diameter; line and cross generating lasers are 9mm in diameter) are extremely efficient and reliable at an economical price. The new and improved Compact Laser Diode Modules are well suited for a wide range of medical and industrial alignment, barcode scanning, targeting, and 3D measurement applications. In addition, the low current requirements of the modules mean the lasers can be battery operated in a handheld device. Designed for applications where space is a key consideration, these laser modules offer a compact, highly reliable solution. Following a recent upgrade, this laser platform offers excellent boresighting for improved accuracy and ease of installation along with a new TTL modulation option. The Compact range of laser modules is available with a collimated or focused elliptical spot output, or line or cross optics at 520nm, 635nm, or 650nm. Optical output power options are 0.9mW or 4mW as standard.


  • Elliptical Beam, Line & Cross Generating Optics Available
  • Compact Design
  • CW or TTL Modulation Options
  • Excellent Boresighting <0.5°
  • High Reliability
  • Wavelengths: 520nm, 635nm, and 650nm
  • Optical Output Powers from 0.9mW to 4mW
  • Hard Anodised Aluminium Housing for Electrical Isolation Available.


  • Industrial Alignment
  • Patient Positioning
  • Laser Pointers
  • Light Scattering
  • Barcode scanning
  • Targeting
  • 3D Measurement

Product Specifications

ProPhotonix Compact Laser Diode
