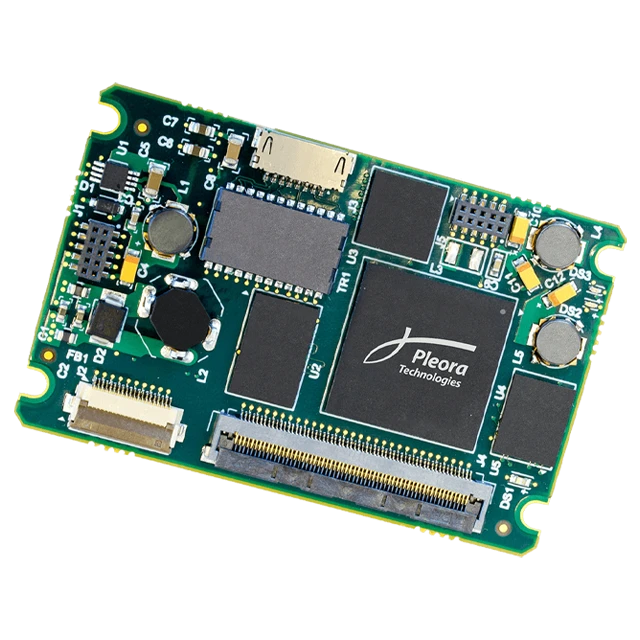

Pleora Embedded Video Interface iPORT NTx-Mini-S


Pleora’s iPORT NTx-Mini-S Embedded Video Interface hardware is a thin small form-factor solution that provides manufacturers with a straightforward way to integrate Gigabit Ethernet (GigE) video connectivity into their products. The embedded hardware converts video data to packets over a GigE link and sends it with low, consistent latency to receiving software or hardware.

The iPORT NTx-Mini-S is supported by Pleora’s feature-rich eBUS SDK application tool kit. With this software suite, designers can rapidly prototype and deploy production-ready software to support video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API).


  • Compact very low 5mm thickness
  • Throughput approaching 1 Gb/s
  • GigE Vision and GenICam compliant
  • Up to 24-bit, 90 MHz parallel LVTTL/LVCMOS video input, and 2 interleaved taps
  • Line scan and area scan modes
  • 32 MB frame buffer for store-and-forward applications
  • Programmable logic controller (PLC)
