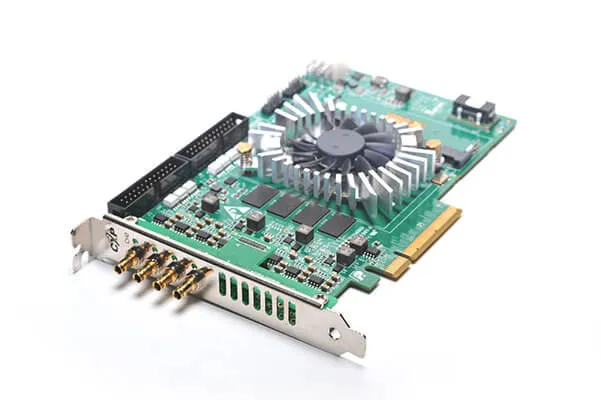

KAYA Instruments Komodo 4CH CoaXPress KY-FGK-400


Komodo is best in class Frame Grabber supporting CoaXPress™ standard. The Komodo is capable of receiving video streams from up to 4 CoaXPress™ links in single, dual or quad modes. It is used for simultaneous capture from up to two quad link cameras. Each link supports standard CoaXPress™ bitrates up to 6.25 Gbps. This CoaXPress™ Frame Grabber is ideally suited for industrial, defense and aerospace Machine Vision Systems and applications.

The Komodo can easily receive video streams on the CoaXPress™ links and transmit them to computer memory through the PCIe interface. This product also provides GPIO for machine control signals, such as triggers, shaft encoders, exposure control and general I/O, which can be controlled aside video stream acquisition. The Komodo uses standard DIN connectors as a CoaXPress™ interface to the camera and standard 100 mil headers for general purpose I/O. The Frame Grabber utilizes PCIe Gen3 x4 links for communication with Host PC for video uploading and configuration.


  • Up to 4 CoaXPress™ 6.25Gbps channels
  • PCIe Gen3 x8 interface with up to 55Gbps throughput
  • 136 Gbps DDR3 memory
  • PoCXP support on all channels
  • Onboard image processing (DeBayer, FFC, Color correction and much more)
  • Flexible GPIO interface
  • Sophisticated GUI and SDK support

Product Specifications
