Imperx PCI/PCI Express VCE-HDPCIe01

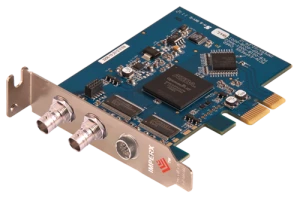

IMPERX VCE-HDPCIe01 is a professional level PCI Express video capture card that enables users to view and store in real time megapixel video images from any standard HD-SDI video source onto desktop PC computers.

IMPERX VCE-HDPCIe01 is capable of capturing single or multiple frames and standard AVI clips from any SD or HD-SDI compliant video source. Each captured frame can be stamped with a user message along with the date and time of capture. A full software suite that includes drivers, C/C++, SDK, and an application program is provided with each IMPERX VCE-HDPCIe01 video capture card.


  • SD or HD-SDI real time video and audio acquisition with SDI loop-through
  • Audio acquisition of two 24-bit channels @ 48KHz
  • PCI Express x1 lane providing 2.5 Gbps of bandwidth
  • Serial communications interface for camera control
  • Intelligent scatter/gather DMA
  • Flow-through pipelined architecture
  • Dynamic buffer allocation
  • Selectable window sizes
  • Adjustable RGB brightness and auto white balance
  • Programmable RGB lookup tables and gamma correction
  • Captures single, multiple frames or AVI clips
  • Normal or delay capture
  • Date, time and text overlay
  • RAW, BMP, TIFF or adjustable JPEG file format
  • 16/20-bit YCrCb 4:2:2 or 24-bit RGB formatting
  • Image viewer with DVR controls
