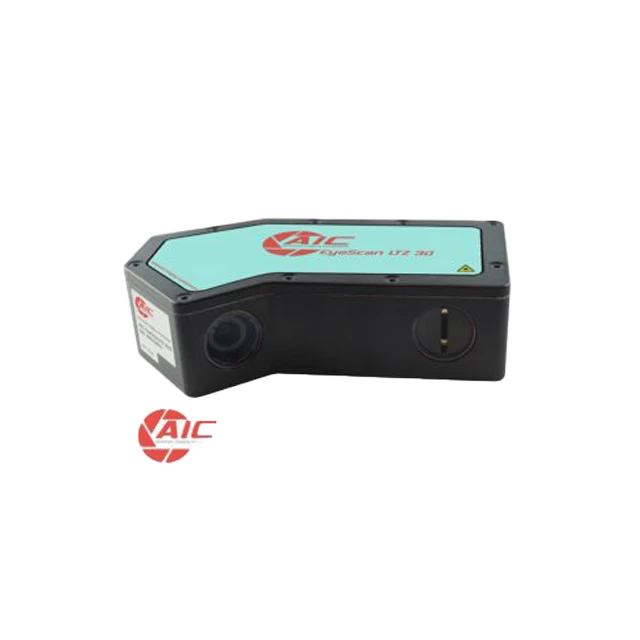

EVT EyeScan LTZ 3D

Highlights

The EVT EyeScan LTZ 3D is a very compact and fast laser triangulation sensor. It is especially suitable for profile scans, for example, glue and sealing, bead inspection, as well as bin-picking. The EVT The EyeScan LTZ 3D is supported by the EyeVision 3D software, all the software functions and commands are available for the user. The LTZ 3D has a Dual-Core ARM processor and an FPGA for fast preprocessing of the data.

EyeSens 3D Profile

EyeSens 3D Profile offers smart Profile Inspection completely without a PC. The easy One-Button-Training of the integrated inspection surface of the EyeVision software has ready-made inspection programs. Therefore the user can start the inspection immediately without much configuration.

  • Smart 3D Sensor – runs completely without PC; evaluation is carried out on the sensor
  • Compact hardware with FPGA and red or blue laser
  • Single-Button-Training of various profiles
  • Inspection for the correctness of profiles with repeatable accuracy
  • Process Mode with a ready-made application for Profile Inspection or
  • A graphical user interface with drag-and-drop programming and the EyeVision 3D Profile command set
  • Possibility to integrate further inspections with the Single-Button-Training
  • Further ready-made applications for Bent-Sensor, Glue&Seal-Sensor, Gap-Sensor, etc. available

Single-Button-Training Features

  • allows single-button-training of various profiles
  • Process Mode with ready-made applications for Profile Inspection
  • A pre-programmed profile inspection program
  • Easy-to-handle one-button-configuration of probes
  • One-button-setting of the EyeSens 3D Profile hardware
  • ProfileMatch available with all pre-configured commands

With each measurement command also the ProfileMatch can be activated. This means that a reference pattern is searched and compared with each captured image.

EyeScan LTZ 3D Models

EyeScan LTZ 3D (8/30)
regular
(8/34)
regular
(8/30)
large
(8/34)
large
(8/30)
xlarge
(8/34)
xlarge
(8/30)
xxlarge
(8/34)
xxlarge
(6/32)
regular
Min. distance Z (mm) 90 80 170 150 285 245 460 400 70
Max. distance Z (mm) 245 195 470 375 785 625 1285 1020 285
Min. horiz. FoV X (mm) 65 65 130 120 215 200 350 325 80
Max. horiz. FoV X (mm) 150 125 295 240 495 400 810 660 230
Resolution X Min [μm] 60 50 110 100 170 160 280 260 70
Resolution X Max [μm] 120 100 240 190 390 320 640 520 190
Resolution Z Min [μm] 10 10 20 20 30 30 40 40 10
Resolution Z Max [μm] 40 30 80 60 130 90 220 150 7
