Euresys ID Bundle
Highlights

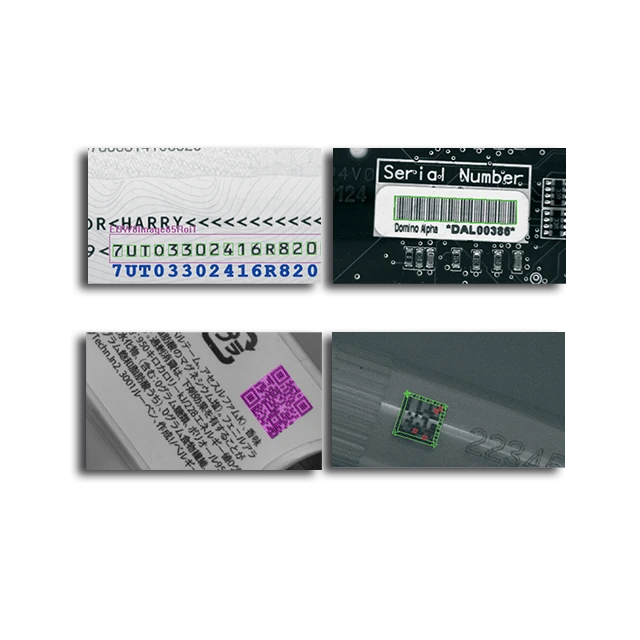

The Euresys ID Bundle is a cost-effective bundle of eVision’s identification libraries. The Euresys ID Bundle includes EasyImage, EasyOCR, EasyOCR2, EasyBarCode, EasyMatrixCode, and EasyQRCode.
Features
- EasyLocate Interest Point: New working mode (alternative to EasyLocate Axis Aligned Bounding Box) simplifying the annotation of the dataset and the configuration of the tools when all objects have the same size. A single click is enough to annotate an EasyLocate Interest Point object.
- EasyGauge: New Polygon Gauge in addition to Point, Line, Rectangle, Circle and Wedge gauges. Deep Learning tools now supporting GPU processing on NVIDIA Jetson. Faster compilation time with simplified C++ headers and reduced calling cost to the Open eVision API.
- EasyOCR is a font-dependent printed character reader based on a template matching algorithm. It has been designed to read any kind of short text (part numbers, serial numbers, expiry dates, manufacturing dates, lot codes, …) printed on labels or directly on parts.
- Open eVision Studio is the evaluation, prototyping and development tool of Open eVision. Its intuitive graphical user interface allows you to call and immediately see the result of any of eVision’s 2D image processing functions. A scripting functionality generates the corresponding code, which can then be copied and pasted into your application. Open eVision Studio is free (when using Open eVision 2.0 and above) and does not require any license. Just click on DOWNLOAD OPEN EVISION STUDIO and install Open eVision. Sample images, manuals and sample programs are included.
- EasyMatrixCode is a fully automatic reader of 2D Data Matrix codes. It recognizes symbols of any size, contrast, location and orientation in a single operation. Error detection and correction algorithms are used to provide a reliable reading. EasyMatrixCode is fully compatible with the ANSI/AIM BC11-1997 standard. EasyMatrixCode2 now supports the Data Matrix Rectangular Extension (ISO/IEC 21471,DMRE). Data Matrix codes are widely used for parcel tracking and part identification in the semiconductor, pharmaceutical and mechanical industries.
- EasyOCR2 is a font-dependent printed character reader. It has been designed to read short texts such as part numbers, serial numbers, expiry dates, manufacturing dates, lot codes, … printed on labels or directly on parts.
- EasyBarCode is a library designed to automatically locate and read bar codes. Bar codes encode short character string and are widely used for marking and identifying goods. EasyBarCode is able to identify and read a wide range of standard commonly-used symbologies as well as special symbologies. EasyBarCode automatically locates the bar code symbol in the image and supports code rotation. Moreover, for prototyping or special cases, an advanced manual location mode is also available.
- EasyQRCode is a robust QR code reading library for industrial applications such as part identification and product or time tracking. These applications typically require the fast and reliable decoding of variable-content QR codes. QR codes are 2D bar codes. They are widely used for their fast readability, high reliability and their large storage capacity compared to ordinary barcodes.
- EasyImage includes operations usually performed as pre-processing steps to improve the image quality and obtain a good contrast between the background and the objects to be inspected. EasyImage supports gray-level and color images. Selected morphology functions are also optimized for binary (1-bit per pixel) and bi-level images. EasyImage includes numerous image processing functions, such as enhancement and restoration by linear or non-linear filtering, arithmetic and logic operations, geometric transformations for image registration, histogram analysis for thresholding, projection, etc.
Additional Options
- Neo is the new Licensing System of Euresys. It is reliable, state-of-the-art, and is now available to store Open eVision and eGrabber licenses.
- Neo allows you to choose where to activate your licenses, either on a Neo Dongle or in a Neo Software Container. You buy a license, you decide later.
- Neo Dongles offer a sturdy hardware and provide the flexibility to be transferred from a computer to another.
- Neo Software Containers do not need any dedicated hardware, and instead are linked to the computer on which they have been activated.
- Neo ships with its own, dedicated, Neo License Manager, which comes in two flavours: an intuitive, easy to use, Graphical User Interface and a Command Line Interface that allows for easy automation of Neo licensing procedures.
