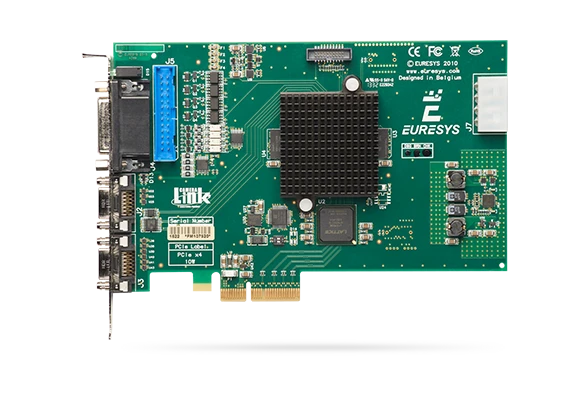

Form Factor
PCI Express card
-
Format
Standard profile, half-length, 4-lane PCI Express card
-
Cooling Method
Air-cooling, passive heatsink
-
Mounting
For insertion in a standard height, 4-lane or higher, PCI Express card slot
-
Connectors (Mechanical)
'BASE' on bracket: 26-position Shrunk Delta Ribbon (SDR) socket; Camera Link Base connector | 'MEDIUM/FULL': 26-position Shrunk Delta Ribbon (SDR) socket; Camera Link Medium/Full/80-bit connector | 'EXTERNAL I/O' on bracket: 26-pin 3-row high-density female sub-D connector; I/O lines and power output | 'INTERNAL I/O' on PCB: 26-pin 2-row 0.1" pitch pin header with shrouding; I/O lines and power output | POWER INPUT' on module: 4-pin MOLEX power socket; 12 VDC power input for PoCL camera and I/O power
-
Dimensions
L 167.65 mm x H 111.15 mm | L 6.6 in x H 4.38 in
-
Weight
133 g, 4.69 oz
-
Standard
PCI Express 1.0
-
Link Width
4 lane
-
Link Speed
2.5 GT/s (PCIe 1.0)
-
Maximum Payload Size
1024 bytes
-
DMA
32- and 64-bit
-
Peak Delivery Bandwidth
1,024 MB/s
-
Effective (Sustained) Delivery Bandwidth
Up to 833 MB/s for a PCI Express payload size of 256 bytes and 64-bit addressing | Up to 844 MB/s for a PCI Express payload size of 256 bytes and 32-bit addressing | Up to 754 MB/s for a PCI Express payload size of 128 bytes
-
Power Consumption
Max. 6.9 W; Typ. 5.7 W (0.48 A @ 3.3V;0.34 A @+12V)
-
Interface Standard(s)
CameraLink 2.0
-
Connectors (Camera/Video Input)
2 Shrunk Delta Ribbon (SDR) Miniature Camera Link (MiniCL)
-
ECCO - Extended Camera Link Cable Operation
ECCO
-
Number of Cameras
One 80-bit (10 x 8-bit taps), Full, Medium or Base camera
-
Line-Scan Cameras Supported
Yes
-
Maximum Aggregated Camera Data Transfer Rate
6.8 Gbit/s (850 MB/s)
-
CameraLink Configuration
Base, Medium, Full, 80-bit (10 x 8-bit taps)
-
CameraLink Clock Frequency Range
From 20 MHz up to 85 MHz
-
Camera Types
Gray-scale and color (RGB and Bayer) cameras | Area-scan and line-scan cameras
-
Camera Pixel Formats Supported
Monochrome, Bayer, and RGB (PFNC names): Mono8, Mono10, Mono12, Mono14, Mono16; BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX = GR, RG, GB, or BG; RGB8, RGB10, RGB12, RGB14, RGB16
-
Area-Scan Camera Control Trigger
Precise control of asynchronous reset cameras, with exposure control. | Support of camera exposure/readout overlap. | Support of external hardware trigger, with optional delay and trigger decimation.
-
Area-Scan Camera Control Strobe
Accurate control of the strobe position for strobed light sources. | Support of early and late strobe pulses.
-
Line-Scan Camera Control Scan/Page Trigger
Precise control of start-of-scan and end-of-scan triggers. | Support of external hardware trigger, with optional delay. | Support of infinite acquisition, without missing line, for web inspection applications.
-
Line-Scan Camera Control Line Trigger
Support for quadrature motion encoders, with programmable noise filters, selection of acquisition direction and backward motion compensation. | Rate Converter tool for fine control of the pixel aspect ratio. | Rate Divider tool
-
Line-Scan Camera Control Line Strobe
Accurate control of the strobe position for strobed light sources.
-
On-Board Memory
128 MB (64 MB for image data)
-
Image Data Stream Processing
Unpacking of 10-/12-/14-bit to 16-bit with selectable justification to LSb or MSb
-
Input LUT (Lookup Table)
Monochrome: 8-bit, 10-bit or 12-bit per pixel, up to 1000 MPixel/s | RGB: 3x8-bit, 3x10-bit or 3x12-bit per pixel, up to 250 MPixel/s
-
Geometrical Operators
Cropping (not available for 2YE cameras) | Left/right and up/down mirroring
-
Bayer CFA to RGB Decoder
Advanced interpolation method using average and median functions on a 3x3 kernel | Up to 225 MPixel/s
-
Number of Lines
10 I/O lines: 2 differential inputs (DIN); 4 isolated inputs (IIN); 4 isolated outputs (IOUT)
-
Usage
The input lines can be used by the acquisition channel as: Camera frame trigger source (area-scan only); Acquisition sequence trigger source (area-scan only); Camera line trigger source (line-scan only); Page acquisition trigger source (line-scan only); Page acquisition end trigger source (line-scan only); (Quadrature) motion encoder input (line-scan only) | The IOUT 1 output line can be used by the acquisition channel as: Illumination strobe output | All the input lines can be used as general purpose inputs | All the output lines can be used as general purpose outputs
-
Electrical Specifications
DIN: High-speed differential inputs compatible with ANSI/EIA/TIA-422/485 differential line drivers and complementary TTL drivers | IIN: Isolated current-sense inputs with wide voltage input range up to 30V, compatible with totem-pole LVTTL, TTL, 5V CMOS drivers, RS-422 differential line drivers, potential free contacts, solid-state relays and opto-couplers | IOUT: Isolated contact outputs compatible with 30V / 100mA loads
-
Filter Control
Glitch removal filter available only on input lines used as trigger sources | Configurable with five time constants: 100 ns, 500 ns, and 2.5 μs for trigger / page trigger / page end trigger sources; 40 ns, 100 ns, 200 ns, 500 ns, 1 μs, 5 μs, 10 μs for line trigger sources
-
Power Output
Non-isolated, +5V, 1A and +12V, 1A, with electronic fuse protection
-
Host PC Operating System
Microsoft Windows 10, 8.1, 8, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures | Linux, from kernel version 2.6 to 4.13, compatible with a wide range of distributions, for x86 (32-bit) and x86-64 (64-bit) processor architectures
-
APIs
MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers
-
Memento
Compatible with Memento Event Logging tool
-
Operating Ambient Air Temperature
0 to +50 °C / +32 to +122 °F
-
Operating Ambient Air Humidity
10 to 90% RH non-condensing
-
Storage Ambient Air Temperature
-20 to +70 °C / -4 to +158 °F
-
Storage Ambient Air Humidity
10 to 90% RH non-condensing
