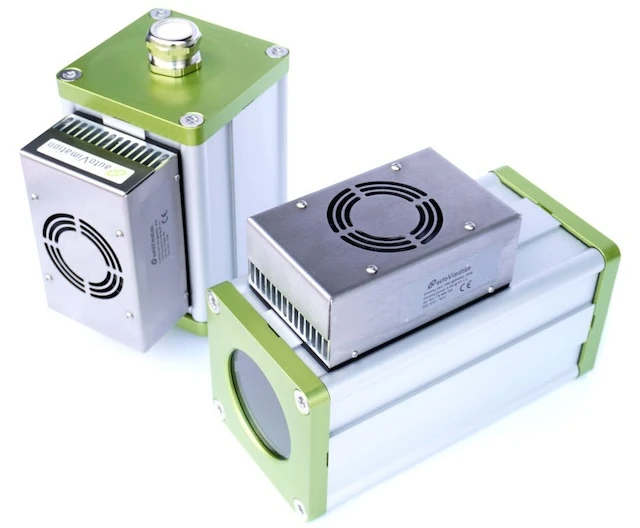

autoVimation Enclosures Turtle
Highlights
If cameras are used under ambient temperatures of about 45°C, active cooling will be usually required.
The Turtle series is particularly suitable for outdoor applications, e.g. suitable in the solar industry, because the Peltier climate control requires only a power supply, which can even be powered by photo-voltaics. These enclosures have been used successfully for years now in the worlds hottest deserts and keep the camera below maximum operating temperatures at up 70°C ambient temperature and up to 1kW of solar radiation. The Peltier controller permanently monitors the camera temperature and automatically switches between cooling and heating operation according to the set temperature levels. The permanent monitoring of the camera’s internal temperature allows in case of fault shutdown of the camera.
Features
- Operation in -20° to +70°C ambient temperature
- Up to +50°C with 350W/m² sun radiation
- Cooling/heating depending on controller type
- Hysteresis adjustable for constant temperature
- Only DC voltage required (e.g. solar panel)
- 4″ BK7 window (standard)
- 30 or 60mm Enclosure extension
- Meganova ring light (with extension)
- M72 front lid
- Dome window for fisheye lenses
- BK7/acrylic windows for up to 2500nm
- Germanium window for 7-14µm
- Double window Ge/glass for Flir A70/700
- IR mirror
- Wind curtain
