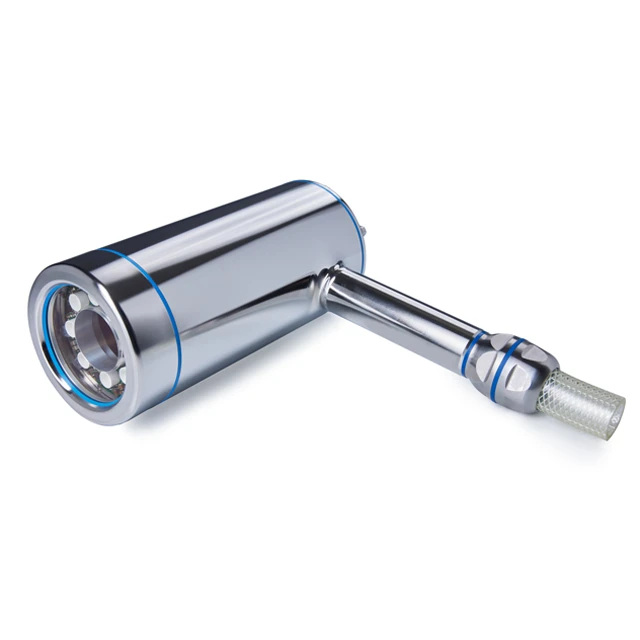

autoVimation Enclosures Shark

Highlights

The Shark is a high grade stainless steel enclosure that offers IP69K protection for cameras up to 62 x 62mm cross-section, especially for hygienically demanding areas such as in the pharmaceutical and food industry. Thanks to the patented Quick-Lock / Heat-Guide clamping system, there is an excellent heat dissipation. The electro-polished V4A stainless steel enclosures avoid corners and edges where dirt or germs could settle. All potential gaps are sealed with FDA approved seal. The new, hygienic mounting system offers a flexible alignment and positioning of the camera in these highly sensitive areas.

Features

Lightweight enclosures, similar weight as matching aluminum enclosures.
Easy to clean, smooth surfaces without corners and edges. Every component made from high grade surgical stainless steel for extra corrosion protection.
Excellent heat dissipation.
All touching surfaces sealed. Additional O-ring seal inside ensuring tightness even when using high pressure cleaner at close distance (IP69K).
Enclosure mounting allows camera adjustment in 3x rotational and 3x transitional directions.
Special hygienic cable glands (EHEDG certified), IP69K with cable conduits or suitable cables. Cable routing through mounting rods possible.
Camera detectable blue seals made from materials with highest chemical resistance and durability (concentrated acids and alkaline liquids, solvents, fats, steam, aggressive cleaning agents).
Cable outlet either through the rear wall or the enclosure handle. The latter allows feeding the cables straight into a machine frame with the enclosure mounting foot.
Internal fixing mechanism, sealed to IP69K requirements, torque resistant up to 170 Nm, avoiding unhygienic gaps. Special gaskets seal contact surfaces reliable with IP69K (high pressure wash down).
Cable routing through mounting rods possible.
Special window seal allowing flush mounting yet still easy window replacement.
Mounting taps/ screws sealed with speacial hygienic washers in order to prevent bacteria accumulation.
Easy lid assembly with Shark enclosure lids.

Hygienic building kit

90° Rod Connector Hygienic PLUS

High grade surgical stainless steel (AISI 316L, V4A, St. 1.4404)
Electropolished smooth surfaces
All touching metal surfaces sealed IP69k with FDA approved seals with high chemical resistance.
Best solution for mounting cameras right above food products, for instance above a conveyor belt.
Distance between rods after mounting: 8mm (36mm distance center to center).

90° Rod Connector Hygienic Standard

Standard 304 stainless steel (V2A, St. 1.4305)
Cast finish
No seal between connector and shaft
Clamp has gap, screw thread covered
Good for areas that are not above foodstuffs and are not cleaned with aggressive cleaning agents.
Distance between rods after mounting: 3mm (33mm distance center to center)
