Ametek Phantom C321


The Phantom Miro C321J and C321 provide high quality HD imaging for on-board auto crash testing and a range of other applications. The small, rugged cameras work perfectly within established Phantom imaging solutions for additional flexibility.

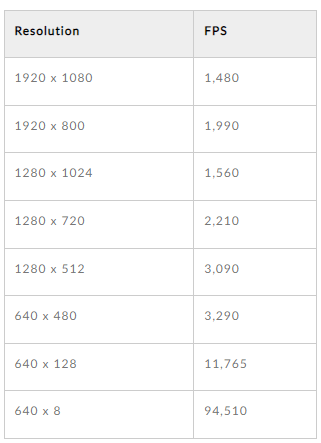

The Phantom Miro C321J and C321 are the next evolution in offering 3GPX/sec throughput, with a maximum frame rate of 1480 fps at full 1920 x 1080 resolution. These cameras provide very high quality, low noise images, and include an ability to set a new CSR default that provides a high-quality image right at boot-up for fast and convenient set-up.


  • 1,480 fps at 1920 x 1080
  • Exposure Index: Mono 10,000 – 50,000 | Color 2,000 – 10,000
  • Up to 16GB RAM
  • 12-bit depth
  • Full Phantom Features and connectivity
  • Programmable I/O – Assign and define camera signals

Product Specifications

AMETEK (Vision Research & Phantom Camera Technology)
Ametek Phantom C321-Photo-1
Ametek Phantom C321-Photo-2
Ametek Phantom C321-Photo-3
  • Ametek Phantom C321-Photo-thumb-1
  • Ametek Phantom C321-Photo-thumb-2
  • Ametek Phantom C321-Photo-thumb-3
