Bit Maxx Long Distance Cables

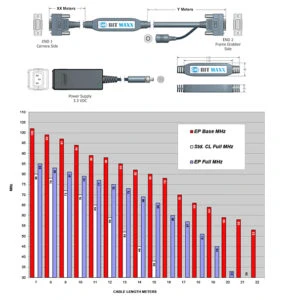

Bit Maxx Long Distance CameraLink Cables (MVP-EP)
Technology
Bit Maxx technology utilizes pre-emphasis and equalization to extend the distance between camera link cables. Equalization is an analog technique that reverses the cable’s low-pass effect with a high-pass filter to recover and restore the original signal. Pre-emphasis is a unique signal-improving technique that opens the eye pattern at the far end of the cable for point-to-point applications. It adds additional output current during the bit’s transition time.
Benefits
- Double your cable distance
- A fraction of the cost of repeaters
- High-flex cable construction
- Compact, low-profile solution
- PoCL compatible
- Base and Full configurations available
| Base Configuration Part Numbers
MVB-EP-B-(XX)-(Y) |
Full Configuration Part Numbers
MVB-EP-F-(XX)-(Y) |
 |

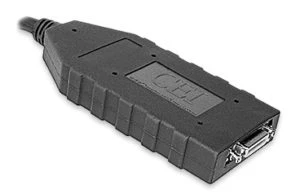

Bit Maxx Ultimate Performance Extended Distance Camera Link Cables (MVB-P)
Ultimate Performance Extended Distance Camera Link MVB-P
Exclusive technology which allows you to extend your Camera Link cable to 25 Meters @ 85MHz without the use of repeaters and their associated hardware! A simplified solution.

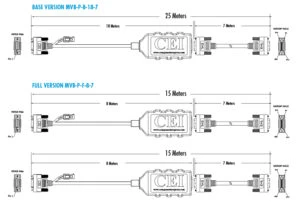

| Base Version (1) Power supply: Desktop – Switching type (1) 18 Meter CL line conditioner cable HIFLEX design 10,000,000 tic-toc cycles (1) 7 Meter CL cable MDR 26P male end HIFLEX design 10,000,000 tic-toc cycles  |
Full Version (2) Power supply: Desktop – Switching type (2) 8 Meter CL line conditioner cable HIFLEX design 10,000,000 tic-toc cycles (2) 7 Meter CL cable MDR 26P male end HIFLEX design 10,000,000 tic-toc cyclesInput 120V AC cord NOT included. |
 |

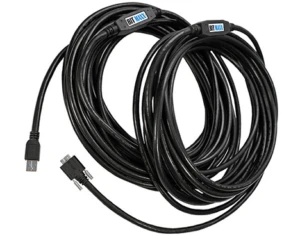

Bit Maxx Long Distance USB3 Cables (MVB-USB3)
USB3 Long Distance Cables for Machine Vision Applications
ONLINE CONFIGURATOR NOW AVAILABLE – Click here.
| What is it?
Active USB3 Long Distance Cables for USB3 Vision. Why is it important? Currently, the best passive USB3 cables on the market are unable to surpass lengths greater than 5M. There are other active cables on the market, but they are not backwards compatible to USB2, and are unable to plug & play in a standard USB environment. These other active solutions offer insufficient wattage for the camera and expensive optical solutions do not support power over the cable and are very delicate. Their performance instability leads to unreliable performance resulting in image errors due to the cabling. |
The Solution
USB3 BitMaxx cables offer the Industry’s First STABLE Plug & Play active cable solution for USB Vision, supporting full 5 gig USB3 throughput and power delivery up to 20 meters in length with full USB2 backward compatibility. Designed with the emphasis for durability and dependability using high-grade copper and robust shielding to protect against EMI, CEI’s USB3 BitMaxx cables provides excellent and reliable performance. Available with a variety of connector and cable choices including right angle exits and Robotic grade cable. Each assembly undergoes rigorous testing and verification before leaving our facility.
|
Applications

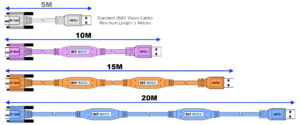

USB3, USB3 Vision, Industrial USB3 applications that require long-distance cabling.PricingA cost-effective solution, and less than other products within the market place including Active Optical Cables. Availability?Standard versions are in stock Now, with customs available within 8 weeks A.R.O. Extended Distance USB Vision Cables – Super Speed USB 3.0 – Available Lengths 10M, 15M, and 20M
|
If you do not see the cable you need, contact us today for custom solutions.
