Smart Vision Lights RM140-4Z-KIT

Highlights

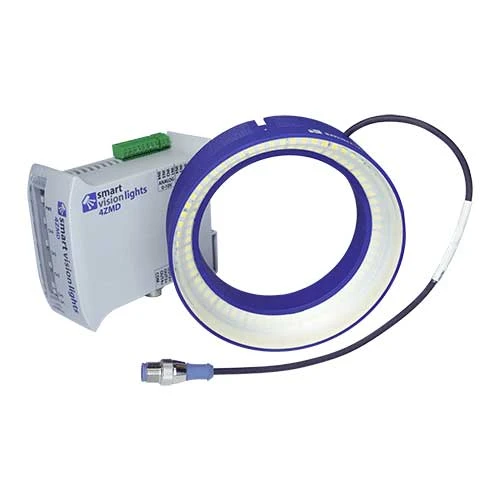

The compact and powerful  Smart Vision Lights RM140-4Z-KIT Mini Ring Light Kit has low-angle ring light that works best for dark field ring applications. The light included can also be used for radial illumination. The RM140-4Z-KIT features an aluminum housing and is IP65 rated. The RM140-4Z KIT includes an RM140-4Z mini ring light and a 4ZMD-250 external driver. Contact us for more details!

Product Description

The compact and powerful RM140-4Z Mini Ring Light is a low-angle ring light that works best for darkfield ring applications. The light can also be used for radial illumination. The RM140-4Z series features an aluminum housing and is IP65 rated. The RM140-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive, allowing for a range to be set from 10%–100% for continuous operations or OverDrive strobe mode. The maximum continuous current for the 4ZMD-250 is 250 mA when connected to the RM140-4Z. When connected to a LED Light Manager (LLM), each individual channel can be set to continue on, off, any intensity level in between, and even OverDrive strobe mode.

Smart Vision Lights RM140-4Z-KIT Features

• Independently control four individual zones built into a single light
• Sold with the 4ZMD, which allows for continuous operation or OverDrive strobe mode for each channel
• Built-in individual intensity control channels for either continuous operation or OverDrive strobe mode
• PNP high-speed strobe input
• 5-pin M12 quick-connect (reverse -key)
